Features:

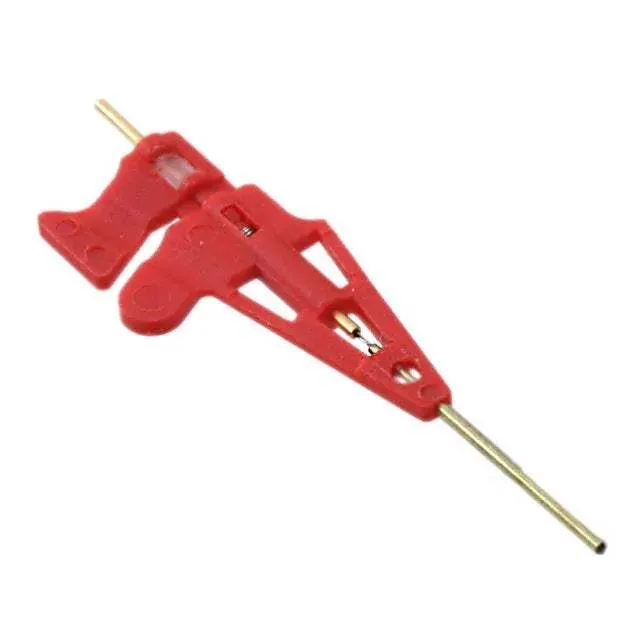

• 72902-2: Red Micro SMD Grabber Test Clip
• Designed for easy attachment to SMD chips with pitches down to 0.008” (0.20mm)
• Thin yet durable design permits attachment with close spacing in tight areas
• Insulated tip minimizes shorting on adjacent pins
• Gold plating for low resistance connections
• Easy attachment to standard test leads
• Holding rods available to reinforce connection positions during side-by-side measurements (order Pomona model number 72903)

Ratings

For CE Compliance and for personal safety, do not hold in hand when voltages exceed 33 Vrms/70 Vdc.

• Maximum voltage for hands free use: 70 Vrms max.
• Current: 1 maxi 500 mA
• Voltage: Less than 33 Vac/70 Vdc
• Temperature: -20ºC to 80ºC (-4ºF to 176ºF)
• Resistance: Less than 200 mΩ
